GRB 130407A — Source 3 (SWIFT J163119.6+102405)

Build custom XRT products for this source.

Image of the XRT detection

This source is detected in 1 block. Show all images.

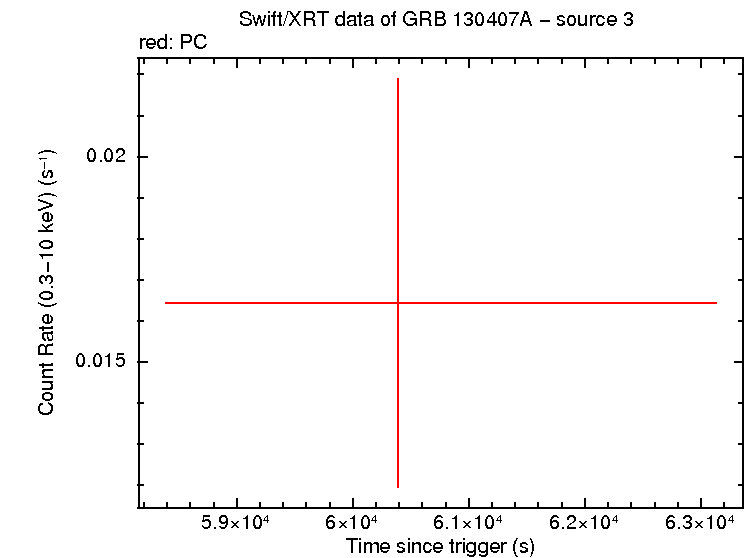

Image of the LC

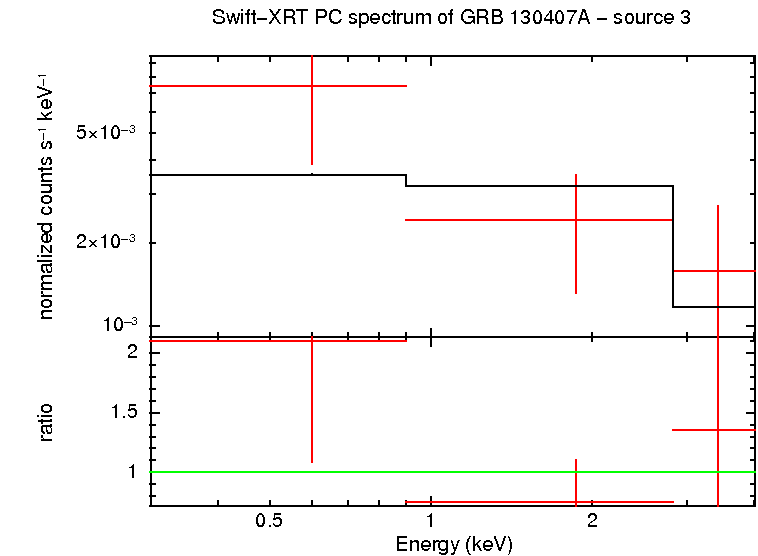

Spectrum

Image of the spectrum

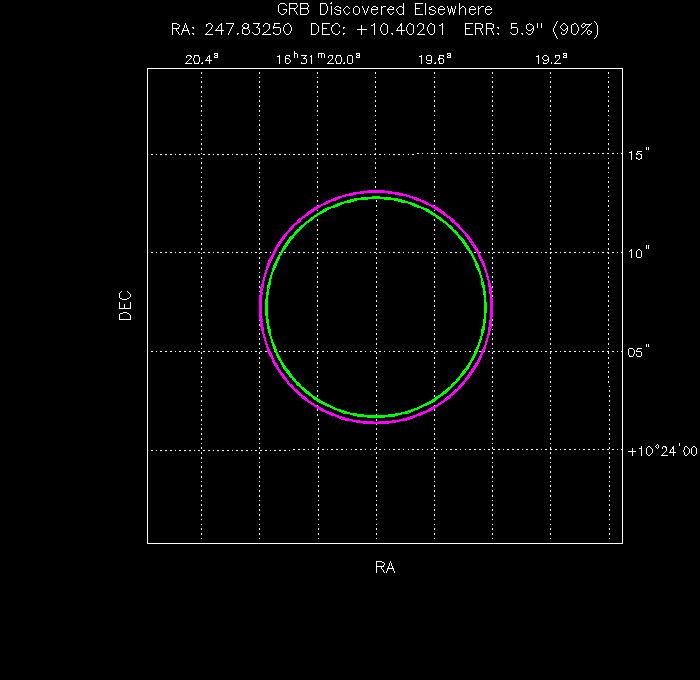

Enhanced position

Image of the UVOT image

Back to list of objects in this field.

Source details
Rank/Classification: 4: Known X-ray Source
RA (J2000):16h 31m 19.80s (= 247.83250°)
Dec (J2000):+10° 24′ 07.2″ (= +10.4020°)
Error (radius, 90%):5.9″ (enhanced position)
Detection flag:Good
XRT exposure:1050 s (vignetting corrected)
Peak rate:0.016 (±0.005) ct s-1
Peak flux:7.1 (±2.1) ×10 erg cm-2 s-1
Has spectral fit?Yes
NH 6.07 × 1020 cm-2
Γ 1.30
Database ID:3
Possible issues:
Optical Loading: No warning (automatic)
Stray Light: No warning (automatic)
Extended Emission: No warning (automatic)
Catalogue information
Known X-ray emitter?Yes - 1RXS J163120.6+102359 in the ROSAT/RASSFSC catalogue.
Cat. rate1:0.016 (±0.008) ct s-1
Cat. flux2:9 (±5) ×10-13 erg cm-2 s-1
Observed/Cat. flux≤0 σ
Fading? No (≤1-σ significance).
Near 2MASS source? Yes, 1 match. Show details.
Near SIMBAD source?No.
Catalogue SearchCone search radius 17″ Vizier | Simbad | NED | X-ray master | LSXPS | 3XMM-DR5

Notes
All XRT count rates and fluxes are 0.3—10 keV
1Catalogued count-rates have been converted to XRT equivalents.
2Catalogued upper limits and fluxes have been converted to the XRT equivalent using the automatic power-law spectral fit described above.

2MASS objects near the source

ID Position Offset from
XRT source		 J H K
