Catalogue XRT results for GRB 230805B

Data were analysed using HEASOFT version 6.32

About these products.

Back to list of GRBs.

Summary Information

RA:13h 50m 58.38sLC breaks:0
Dec:+31° 11′ 28.7′′LC type:Unknown.
Err:1.8′′NH,intr.:5.91×1020 cm-2
Gal long:RedshiftUnknown
Gal lat:Γ1.7
|

Jump to: Spectra | Compare to other bursts.

If you use any of these data, please cite Evans et al. (2009), which describes how these products were created (see the usage policy for more information).

Spectra

Hide the spectrum section.

Since there are no breaks in the light curve, only the time-averaged spectra are shown below. Times of flaring have not been removed, however this makes little difference to most spectra (see Fig 7/8c of Evans et al. 2009). For more information see the time-resolved spectroscopy documentation.

Time-averaged spectrum (T0 + 210 to 8038 s)

Download spectral files for Time-averaged spectrum.

Plots to download

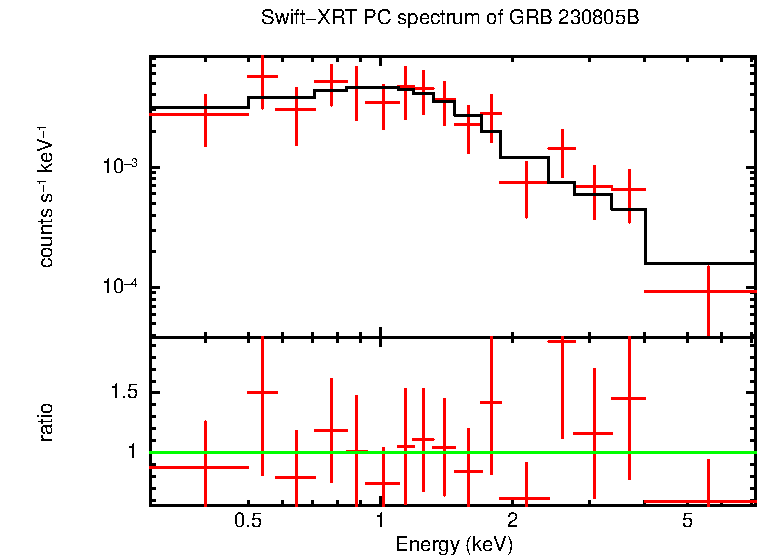

PC mode spectrum of GRB 230805B

PC mode. Mean photon arrival: T0+1994 s

NH (Galactic)1.41 × 1020 cm-2
NH (intrinsic)6 (+7, -6) × 1020 cm-2
z of absorber0
Photon index1.73 (+0.26, -0.24)
Flux (0.3-10 keV)
(Observed)		5.54 (+1.01, -0.82) × 10-12 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)		6.2 (+0.8, -0.7) × 10-12 erg cm-2 s-1
Counts to flux (obs)3.87 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)4.33 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?		127.81 (182)
Spectrum exposure3.4 ks

Comparison with other bursts

Hide the comparison section.

Parameter distributions

The plots below show the probability density functions of the temporal and time-averaged spectral parameters for all GRBs, with the data for GRB 230805B shown on in colour. Click the images for larger versions.

For all plots, the solid vertical lines mark the values for this GRB, and the dashed lines the 1-σ uncertainties. For α and Tb, the colour changes for each phase. For the spectral parameters, the WT fits are shown in blue and the PC in red. These figures correspond to Figs. 5,6, 7a and 8a of Evans et al. (2009). See the PDF documentation for more information.

Temporal indicesBreak TimesNHSpectral indices
Comparison of decay indices Comparison of light curve break times Comparison of intrinsic column densities Comparison of spectral energy indices

Closure Relationships

The plots below show (α, β) scatter plots for each of the different types/phases of light curves (see light-curve types), since GRB 230805B is of type, "Unknown," which has no scatter plots of its own. GRB 230805B is shown in colour, with each light curve phase, or XRT mode marked by a different colour. α and β are the temporal and spectral energy power-law indices respectively. The shaded regions mark those allowed by the standard closure relationships. These figures correspond to Fig. 10 of Evans et al. (2009). See the closure relationship documentation for more information.

No break
Comparison of nobreak closures
One-break, steep first
Steep phase		One-break, steep first
Shallow phase
Comparison of One-break, steep first, steep phase closuresComparison of One-break, steep first, shallow phase closures
One-break, shallow first
Shallow phase		One-break, shallow first
Steep phase
Comparison of One-break, shallow first, shallow phase closuresComparison of One-break, shallow first, steep phase closures
Canonical
Steep phase		Canonical
Plateau		Canonical
'Normal'		Canonical
Post jet-break
Comparison of Canonical, steep phase closuresComparison of Canonical, plateau phase closuresComparison of Canonical, normal phase closuresComparison of Canonical, post jet-break phase closures
