Catalogue XRT results for GRB 090814A

Data were analysed using HEASOFT version 6.32

Summary Information

RA:	15h 58m 26.44s	LC breaks:	3
Dec:	+25° 37′ 52.4′′	LC type:	Oddball.
Err:	1.5′′	N_H,intr.:	2.88×10⁸ cm^-2
Gal long:	41.872	Redshift	0.696
Gal lat:	48.334	Γ	1.7

Show light curve? | Show spectrum? | Show comparison with other bursts?

Jump to: Light curve | Spectra | Compare to other bursts.

If you use any of these data, please cite Evans et al. (2009), which describes how these products were created (see the usage policy for more information).

Light curve

Hide the light curve section.

This light curve comes from the light curve repository (if you use it, please cite Evans et al [2007, 2009]. Flares, marked by cross-hatched regions, are identified automatically, but may have been manually corrected. These are excluded from the fit. Any power-law breaks added to the fit must be required at the 4-σ level (according to an f-test) to be included in the best-fit. Details of all fits attempted are given below the plot. For more information see the light curve fitting documentation.

Fit Details

N_breaks	χ²	dof	Comments
0	154	107
1	112	105	Break required. (5.68e-06 % probability of chance improvement)
2	99.3	103	Break significance <4-σ (0.14 % probability of chance improvement)
3	84.5	101	Break required. (6.58e-04 % probability of chance improvement). This is the best fit.
4	83.1	99	Break significance <4-σ (44.21 % probability of chance improvement)
5	73.9	97	Break significance <4-σ (1.08 % probability of chance improvement)

There are no flares ignored from this fit.

The best-fitting light curve has 3 breaks.

Click on the number of breaks in the table to the right to change which fit is plotted above and detailed below.

Currently showing the best fit.

α₁	2.16 (+0.21, -0.34)
T_b,1	258 (+24, -40) s
α₂	3.6 (+0.8, -0.6)
T_b,2	337 (+46, -43) s
α₃	2.18 (+0.11, -0.10)
T_b,3	4375 (+1.52 × 10³, -1256) s
α₄	0.6 (+0.4, -0.4)

[Back to top]

Spectra

Hide the spectrum section.

Spectra have been created for each power-law segment in the best fitting light curve (shown above). Times of flaring have not been removed, however this makes little difference to most spectra (see Fig 7/8c of Evans et al. 2009). For more information see the time-resolved spectroscopy documentation.

Jump to: phase1|phase2|phase3|phase4

phase1 spectrum (T0 + 165 to 257 s)

Download spectral files for phase1 spectrum.

Plots to download

WT mode. Mean photon arrival: T0+204 s

N_H (Galactic)	5.88 × 10²⁰ cm^-2
N_H (intrinsic)	3.3 (+0.7, -0.7) × 10²¹ cm^-2
z of absorber	0.696
Photon index	2.77 (+0.13, -0.12)
Flux (0.3-10 keV) (Observed)	6.3 (+0.3, -0.3) × 10^-10 erg cm^-2 s^-1
Flux (0.3-10 keV) (Unabsorbed)	1.184 (+0.115, -0.094) × 10^-9 erg cm^-2 s^-1
Counts to flux (obs)	2.42 × 10^-11 erg cm^-2 ct^-1
Counts to flux (unabs)	4.57 × 10^-11 erg cm^-2 ct^-1
W-stat (dof) What's this?	379.87 (382)
Spectrum exposure	92 s

[Back to top]

phase2 spectrum (T0 + 257 to 336 s)

Download spectral files for phase2 spectrum.

Plots to download

WT mode. Mean photon arrival: T0+290 s

N_H (Galactic)	5.88 × 10²⁰ cm^-2
N_H (intrinsic)	6.7 (+10.1, -6.7) × 10²⁰ cm^-2
z of absorber	0.696
Photon index	2.48 (+0.21, -0.19)
Flux (0.3-10 keV) (Observed)	2.60 (+0.26, -0.24) × 10^-10 erg cm^-2 s^-1
Flux (0.3-10 keV) (Unabsorbed)	3.5 (+0.4, -0.3) × 10^-10 erg cm^-2 s^-1
Counts to flux (obs)	2.54 × 10^-11 erg cm^-2 ct^-1
Counts to flux (unabs)	3.45 × 10^-11 erg cm^-2 ct^-1
W-stat (dof) What's this?	276.69 (266)
Spectrum exposure	78 s

[Back to top]

phase3 spectrum (T0 + 336 to 2554 s)

Download spectral files for phase3 spectrum.

Plots to download

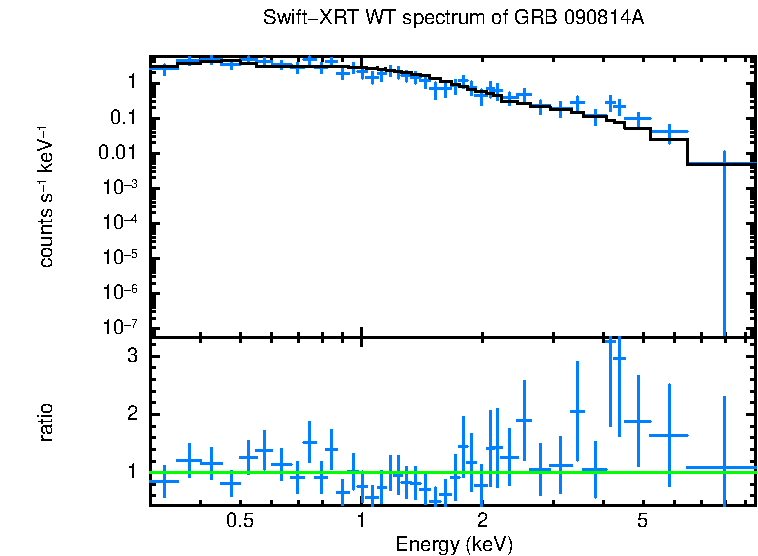

WT mode. Mean photon arrival: T0+378 s

N_H (Galactic)	5.88 × 10²⁰ cm^-2
N_H (intrinsic)	0 (+5.21 × 10²⁰, -0) cm^-2
z of absorber	0.696
Photon index	2.51 (+0.17, -0.14)
Flux (0.3-10 keV) (Observed)	1.30 (+0.14, -0.12) × 10^-10 erg cm^-2 s^-1
Flux (0.3-10 keV) (Unabsorbed)	1.67 (+0.15, -0.15) × 10^-10 erg cm^-2 s^-1
Counts to flux (obs)	2.53 × 10^-11 erg cm^-2 ct^-1
Counts to flux (unabs)	3.25 × 10^-11 erg cm^-2 ct^-1
W-stat (dof) What's this?	164.25 (194)
Spectrum exposure	87 s

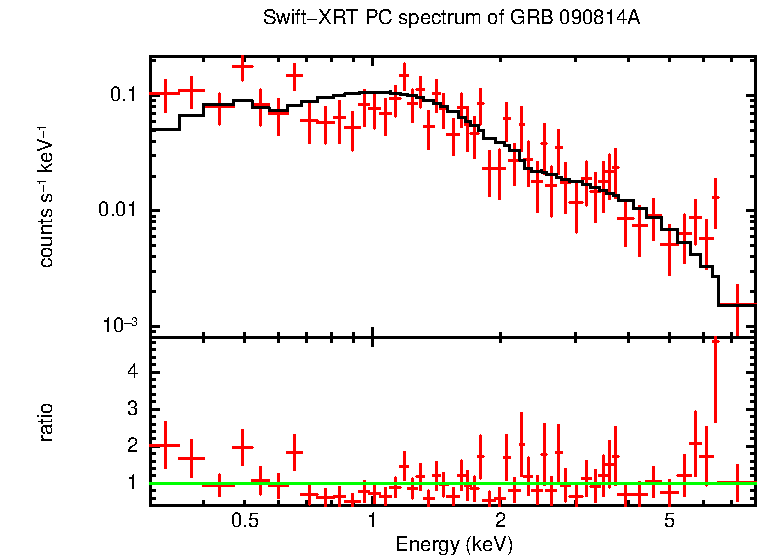

PC mode. Mean photon arrival: T0+1057 s

N_H (Galactic)	5.88 × 10²⁰ cm^-2
N_H (intrinsic)	0 (+2.46 × 10²⁰, -0) cm^-2
z of absorber	0.696
Photon index	1.662 (+0.120, -0.093)
Flux (0.3-10 keV) (Observed)	1.71 (+0.20, -0.14) × 10^-11 erg cm^-2 s^-1
Flux (0.3-10 keV) (Unabsorbed)	1.86 (+0.20, -0.15) × 10^-11 erg cm^-2 s^-1
Counts to flux (obs)	3.94 × 10^-11 erg cm^-2 ct^-1
Counts to flux (unabs)	4.29 × 10^-11 erg cm^-2 ct^-1
W-stat (dof) What's this?	219.92 (257)
Spectrum exposure	2.1 ks

[Back to top]

phase4 spectrum (T0 + 5685 to 417992 s)

Download spectral files for phase4 spectrum.

Plots to download

PC mode. Mean photon arrival: T0+54124 s

N_H (Galactic)	5.88 × 10²⁰ cm^-2
N_H (intrinsic)	2.7 (+7.6, -2.7) × 10²¹ cm^-2
z of absorber	0.696
Photon index	2.6 (+1.0, -0.7)
Flux (0.3-10 keV) (Observed)	4.1 (+1.9, -1.4) × 10^-14 erg cm^-2 s^-1
Flux (0.3-10 keV) (Unabsorbed)	6.9 (+8.3, -2.1) × 10^-14 erg cm^-2 s^-1
Counts to flux (obs)	2.71 × 10^-11 erg cm^-2 ct^-1
Counts to flux (unabs)	4.56 × 10^-11 erg cm^-2 ct^-1
W-stat (dof) What's this?	68.02 (67)
Spectrum exposure	42.6 ks

[Back to top]

Comparison with other bursts

Hide the comparison section.

Parameter distributions

The plots below show the probability density functions of the temporal and time-averaged spectral parameters for all GRBs, with the data for GRB 090814A shown on in colour. Click the images for larger versions.

For all plots, the solid vertical lines mark the values for this GRB, and the dashed lines the 1-σ uncertainties. For α and T_b, the colour changes for each phase. For the spectral parameters, the WT fits are shown in blue and the PC in red. These figures correspond to Figs. 5,6, 7a and 8a of Evans et al. (2009). See the PDF documentation for more information.

Temporal indices	Break Times	N_H	Spectral indices

Closure Relationships

The plots below show (α, β) scatter plots for each of the different types/phases of light curves (see light-curve types), since GRB 090814A is of type, "Oddball," which has no scatter plots of its own. GRB 090814A is shown in colour, with each light curve phase, or XRT mode marked by a different colour. α and β are the temporal and spectral energy power-law indices respectively. The shaded regions mark those allowed by the standard closure relationships. These figures correspond to Fig. 10 of Evans et al. (2009). See the closure relationship documentation for more information.

No break

One-break, steep first Steep phase	One-break, steep first Shallow phase

One-break, shallow first Shallow phase	One-break, shallow first Steep phase

Canonical Steep phase	Canonical Plateau	Canonical 'Normal'	Canonical Post jet-break

[Back to top]
