Summary Information

RA:12h 38m 05.11sLC breaks:5
Dec:+16° 50′ 15.4′′LC type:Canonical.
Err:1.4′′NH,intr.:5.95×1021 cm-2
Gal long:285.539Redshift0.544
Gal lat:79.256Γ1.9
| |

Jump to: Light curve | Spectra | Compare to other bursts.

If you use any of these data, please cite Evans et al. (2009), which describes how these products were created (see the usage policy for more information).

Light curve

Hide the light curve section.

This light curve comes from the light curve repository (if you use it, please cite Evans et al [2007, 2009]. Flares, marked by cross-hatched regions, are identified automatically, but may have been manually corrected. These are excluded from the fit. Any power-law breaks added to the fit must be required at the 4-σ level (according to an f-test) to be included in the best-fit. Details of all fits attempted are given below the plot. For more information see the light curve fitting documentation.

Fitted light curve of GRB 090424

Fit Details

Nbreaksχ2dofCommentsImage
01235646Image of this fit
1775644Break required.

(8.45e-64 % probability of chance improvement)
Image of this fit
2568642Break required.

(4.36e-42 % probability of chance improvement)
Image of this fit
3538640Break required.

(3.20e-06 % probability of chance improvement)
Image of this fit
4508638Break required.

(1.08e-06 % probability of chance improvement)
Image of this fit
5483636Break required.

(1.32e-05 % probability of chance improvement).
This is the best fit.
Image of this fit

There are no flares ignored from this fit.

The best-fitting light curve has 5 breaks.

Click on the number of breaks in the table to the right to change which fit is plotted above and detailed below.

Currently showing the best fit.

α13.4 (+0.5, -0.5)
Tb,1119 (+11, -5) s
α21.18 (+0.11, -0.14)
Tb,2248 (+43, -26) s
α30.741 (+0.028, -0.029)
Tb,31758 (+18, -58) s
α48.00 (+0.00, -3.29)
Tb,41837 (+14, -27) s
α51.054 (+0.025, -0.024)
Tb,52.82 (+1.37, -0.99) × 105 s
α61.40 (+0.09, -0.08)

[Back to top]


Spectra

Hide the spectrum section.

Spectra have been created for each power-law segment in the best fitting light curve (shown above). Times of flaring have not been removed, however this makes little difference to most spectra (see Fig 7/8c of Evans et al. 2009). For more information see the time-resolved spectroscopy documentation.

Jump to: phase1|phase2|phase3|phase4|phase5|phase6

phase1 spectrum (T0 + 90 to 118 s)

Download spectral files for phase1 spectrum.

Plots to download

WT mode spectrum of GRB 090424

WT mode. Mean photon arrival: T0+104 s

NH (Galactic)2.02 × 1020 cm-2
NH (intrinsic)5.4 (+0.8, -0.7) × 1021 cm-2
z of absorber0.544
Photon index2.37 (+0.11, -0.11)
Flux (0.3-10 keV)
(Observed)
3.89 (+0.22, -0.21) × 10-9 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
6.5 (+0.5, -0.4) × 10-9 erg cm-2 s-1
Counts to flux (obs)2.91 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)4.89 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
403.26 (421)
Spectrum exposure28 s

[Back to top]


phase2 spectrum (T0 + 118 to 248 s)

Download spectral files for phase2 spectrum.

Plots to download

WT mode spectrum of GRB 090424

WT mode. Mean photon arrival: T0+171 s

NH (Galactic)2.02 × 1020 cm-2
NH (intrinsic)4.4 (+0.5, -0.4) × 1021 cm-2
z of absorber0.544
Photon index2.01 (+0.06, -0.06)
Flux (0.3-10 keV)
(Observed)
2.42 (+0.09, -0.08) × 10-9 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
3.286 (+0.101, -0.097) × 10-9 erg cm-2 s-1
Counts to flux (obs)3.42 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)4.65 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
482.26 (579)
Spectrum exposure129 s

[Back to top]


phase3 spectrum (T0 + 248 to 1757 s)

Download spectral files for phase3 spectrum.

Plots to download

WT mode spectrum of GRB 090424

WT mode. Mean photon arrival: T0+832 s

NH (Galactic)2.02 × 1020 cm-2
NH (intrinsic)5.8 (+0.3, -0.3) × 1021 cm-2
z of absorber0.544
Photon index1.91 (+0.03, -0.03)
Flux (0.3-10 keV)
(Observed)
6.15 (+0.13, -0.12) × 10-10 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
8.33 (+0.15, -0.14) × 10-10 erg cm-2 s-1
Counts to flux (obs)3.71 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)5.02 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
778.49 (726)
Spectrum exposure1.5 ks

[Back to top]


phase4 spectrum (T0 + 1757 to 1836 s)

Download spectral files for phase4 spectrum.

Plots to download

WT and PC mode spectra of GRB 090424

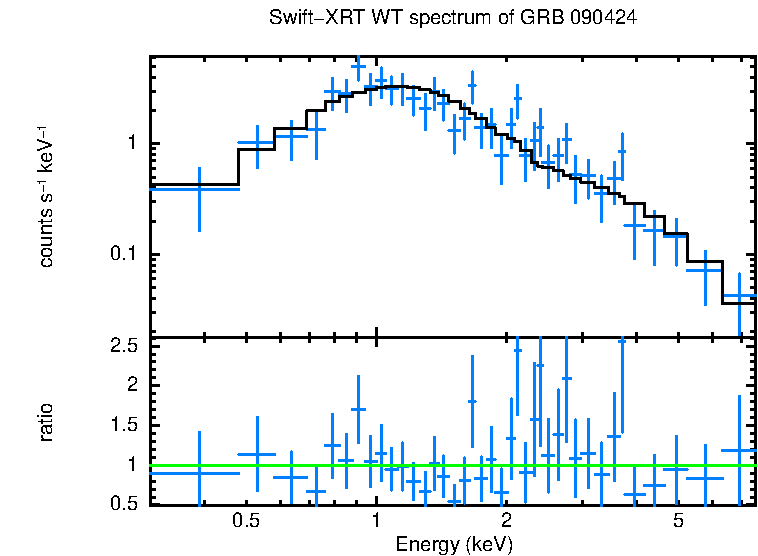

WT mode. Mean photon arrival: T0+1785 s

NH (Galactic)2.02 × 1020 cm-2
NH (intrinsic)7.9 (+3.4, -2.7) × 1021 cm-2
z of absorber0.544
Photon index2.11 (+0.29, -0.27)
Flux (0.3-10 keV)
(Observed)
2.5 (+0.4, -0.4) × 10-10 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
3.9 (+0.8, -0.6) × 10-10 erg cm-2 s-1
Counts to flux (obs)3.38 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)5.31 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
144.45 (189)
Spectrum exposure58 s

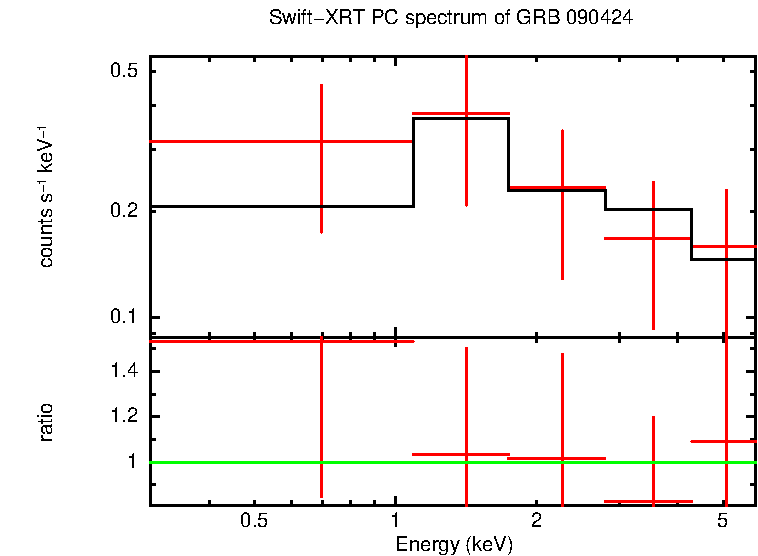

PC mode. Mean photon arrival: T0+1825 s

NH (Galactic)2.02 × 1020 cm-2
NH (intrinsic)0 (+5.75 × 1021, -0) cm-2
z of absorber0.544
Photon index0.4 (+0.8, -0.4)
Flux (0.3-10 keV)
(Observed)
2.03 (+0.94, -1.03) × 10-10 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
2.10 (+0.90, -1.06) × 10-10 erg cm-2 s-1
Counts to flux (obs)1.04 × 10-10 erg cm-2 ct-1
Counts to flux (unabs)1.08 × 10-10 erg cm-2 ct-1
W-stat (dof)
What's this?
22.69 (22)
Spectrum exposure20 s

[Back to top]


phase5 spectrum (T0 + 1838 to 279824 s)

Download spectral files for phase5 spectrum.

Plots to download

PC mode spectrum of GRB 090424

PC mode. Mean photon arrival: T0+38664 s

NH (Galactic)2.02 × 1020 cm-2
NH (intrinsic)5.5 (+0.8, -0.8) × 1021 cm-2
z of absorber0.544
Photon index1.83 (+0.08, -0.08)
Flux (0.3-10 keV)
(Observed)
1.27 (+0.07, -0.06) × 10-11 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
1.65 (+0.07, -0.07) × 10-11 erg cm-2 s-1
Counts to flux (obs)3.91 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)5.11 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
474.83 (502)
Spectrum exposure13.8 ks

[Back to top]


phase6 spectrum (T0 + 284815 to 5130164 s)

Download spectral files for phase6 spectrum.

Plots to download

PC mode spectrum of GRB 090424

PC mode. Mean photon arrival: T0+1468289 s

NH (Galactic)2.02 × 1020 cm-2
NH (intrinsic)4.9 (+1.9, -1.6) × 1021 cm-2
z of absorber0.544
Photon index1.97 (+0.20, -0.19)
Flux (0.3-10 keV)
(Observed)
9.4 (+1.2, -1.0) × 10-14 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
1.28 (+0.13, -0.11) × 10-13 erg cm-2 s-1
Counts to flux (obs)3.57 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)4.84 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
251.82 (291)
Spectrum exposure301.9 ks

[Back to top]



Comparison with other bursts

Hide the comparison section.

Parameter distributions

The plots below show the probability density functions of the temporal and time-averaged spectral parameters for all GRBs, with the data for GRB 090424 shown on in colour. Click the images for larger versions.

For all plots, the solid vertical lines mark the values for this GRB, and the dashed lines the 1-σ uncertainties. For α and Tb, the colour changes for each phase. For the spectral parameters, the WT fits are shown in blue and the PC in red. These figures correspond to Figs. 5,6, 7a and 8a of Evans et al. (2009). See the PDF documentation for more information.

Temporal indicesBreak TimesNHSpectral indices
