Catalogue XRT results for GRB 190708B

Data were analysed using HEASOFT version 6.35.2

About these products.

Back to list of GRBs.

Summary Information

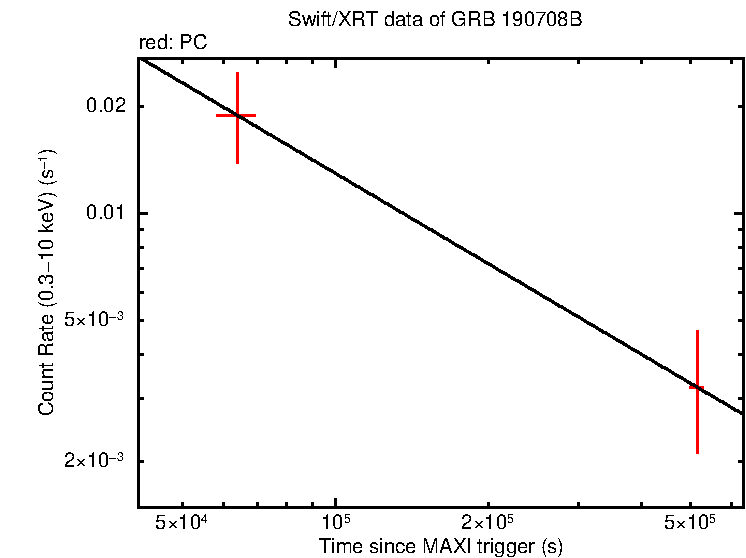

RA:21h 45m 57.08sLC breaks:0
Dec:+07° 52′ 58.4′′LC type:No breaks.
Err:7.3703′′NH,intr.:3.55×1022 cm-2
Gal long:RedshiftUnknown
Gal lat:Γ3.4
|

Jump to: Spectra | Compare to other bursts.

If you use any of these data, please cite Evans et al. (2009), which describes how these products were created (see the usage policy for more information).

Spectra

Hide the spectrum section.

Since there are no breaks in the light curve, only the time-averaged spectra are shown below. Times of flaring have not been removed, however this makes little difference to most spectra (see Fig 7/8c of Evans et al. 2009). For more information see the time-resolved spectroscopy documentation.

Time-averaged spectrum (T0 + 58461 to 69226 s)

Download spectral files for Time-averaged spectrum.

Plots to download

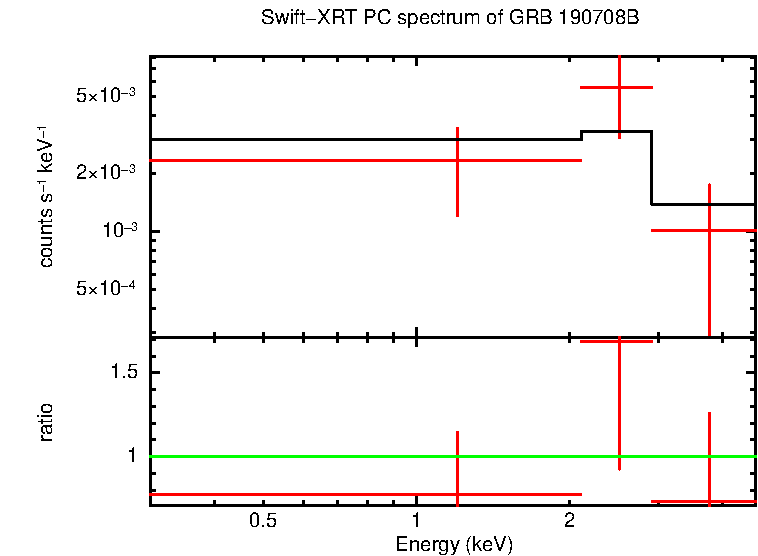

PC mode spectrum of GRB 190708B

PC mode. Mean photon arrival: T0+64280 s

NH (Galactic)6.15 × 1020 cm-2
NH (intrinsic)4 (+7, -3) × 1022 cm-2
z of absorber0
Photon index3.4 (+4.3, -2.9)
Flux (0.3-10 keV)
(Observed)
8.5 (+21.0, -4.4) × 10-13 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
1.6 (+1.00 × 1011, -1.4) × 10-11 erg cm-2 s-1
Counts to flux (obs)3.94 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)7.36 × 10-10 erg cm-2 ct-1
W-stat (dof)
What's this?
5.71 (9)
Spectrum exposure1.1 ks


Comparison with other bursts

Hide the comparison section.

Parameter distributions

The plots below show the probability density functions of the temporal and time-averaged spectral parameters for all GRBs, with the data for GRB 190708B shown on in colour. Click the images for larger versions.

For all plots, the solid vertical lines mark the values for this GRB, and the dashed lines the 1-σ uncertainties. For α and Tb, the colour changes for each phase. For the spectral parameters, the WT fits are shown in blue and the PC in red. These figures correspond to Figs. 5,6, 7a and 8a of Evans et al. (2009). See the PDF documentation for more information.

Temporal indicesBreak TimesNHSpectral indices
Comparison of decay indices Comparison of light curve break times Comparison of intrinsic column densities Comparison of spectral energy indices

Closure Relationships

The plots below show (α, β) scatter plots for each phase of all No breaks light curves. GRB 190708B is shown in colour; where multiple points appear in a given phase (e.g. WT and PC mode spectra for that phase), the different colours refer to different spectra. α and β are the temporal and spectral energy power-law indices respectively. The shaded regions mark those allowed by the standard closure relationships. These figures correspond to Fig. 10 of Evans et al. (2009). See the closure relationship documentation for more information.

No break
Comparison of nobreak closures
