Swift Trigger: 706871

Presumed name: GRB 160801A

Back to trigger list.

BAT 14h 11m 03.12s, +13° 29′ 56.4″
position:(212.763, +13.499 ± 180″)
XRT 14h 11m 03.05s, +13° 29′ 21.1″
position:(212.7627, 13.4892 ± 2.4″)
UVOT No position available.
Galactic NHI:1.48×100 cm-2
Galactic E(B-V):0.022 mag
Best RA:14h 11m 03.05s= 212.7627 d
Best Dec:+13° 29′ 21.1″= 13.4892 d
Gal Lat:66.94
Gal Long:0.63
Sun angle:77.49°, -5.4 hr East of Sun

1Sper #6 auto processing.

GCN Notices for this burst.

View this region in Aladin.

Observability of this burst for Swift.

Sun angle for this burst.

UVOT data

UVOT white image

white image

UVOT white image

white image

Blink images with DSS (link via GSFC)


SPER results page for this trigger.

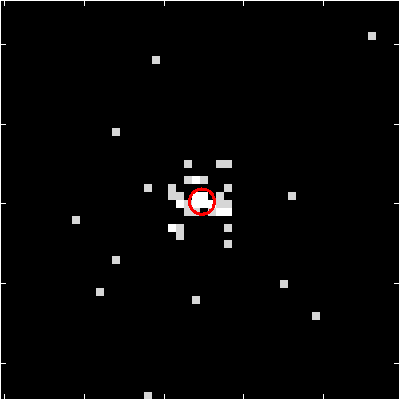

Image of the SPER data

There are 9 SPER messages, and 1 objects have been found

See the SPER page for details of how this position was produced.

Known transients within 5′ of the GRB

Click on the offset to view the transient announcement.

Offset (′′)RA DecDate reportedSource MiscQuery
0.1′′212.7627413.48921GCN #19746GRB 160801A: Enhanced Swift-XRT positionVizier logo
1.3′′212.7629013.48950GCN #19744GRB 160801A: Swift detection of a burstVizier logo
2.4′′212.7633713.48931GCN #19753GRB 160801A: NOT upper limitsVizier logo
14.8′′212.7633313.48514GCN #19749GRB 160801A: Swift-BAT refined analysisVizier logo

Catalogue Searches. Searched 3.33′ around XRT position

Click on the distance to view the full details (not available for sources from the SSS catalogue). Click on the column headers to sort the table on that column (click again to invert sort order).


RA*Dec*SIMBAD name Query

* RA/Dec in equinox J2000

X-ray sources

RA*Dec* Source table2Observatory Query

Queried the X-ray MASTER catalogue.

* RA/Dec in equinox J2000

1Energy band for count-rate is mission specific.


RA*Dec*Redshift CatalogueQuery
2.6212.763313.4894Mag=21.9NEDQuery vizier around this object
9.3212.762713.4918R=21.5, g=22.4, i=21.4, u=22.9, z=21.2SDSSQuery vizier around this object
9.3212.762513.4917Mag=22.4NEDQuery vizier around this object
10.4212.759813.4898R=22.2, g=22.6, i=22.1, u=25.0, z=23.2SDSSQuery vizier around this object
10.4212.759613.4897Mag=22.8NEDQuery vizier around this object
13.1212.762113.4928Mag=22.9NEDQuery vizier around this object
13.1212.762313.4928R=21.8, g=22.9, i=21.3, u=24.7, z=20.6SDSSQuery vizier around this object
28.2212.770313.4917R=22.2, g=22.3, i=21.7, u=24.5, z=21.8SDSSQuery vizier around this object
28.2212.770413.4917Mag=21.5NEDQuery vizier around this object
29.4212.767313.4824R=22.6, g=23.5, i=21.6, u=24.0, z=21.0SDSSQuery vizier around this object


There are 409 galaxies within the position error. The full list is here.

* RA/Dec in equinox J2000

Magnitudes depend on the catalogue. e.g. For Sloan, R is the Sloan r mag, not the Johnson R from APM, for example


RA*Dec* CatalogueQuery
2.6212.763413.4893I=20.9, R=21.2, g=21.8, u=23.0, z=20.8SDSSQuery vizier around this object
17.1212.759513.4928I=22.1, R=23.5, g=24.1, u=23.9, z=21.0SDSSQuery vizier around this object
29.6212.762513.4974B1=20.5, B2=20.9USNO-B1Query vizier around this object
30.7212.755613.4841I=20.2, R=21.5, g=22.9, u=24.4, z=19.5SDSSQuery vizier around this object
35.1212.770213.4957B2=20.9, I=19.0, R2=19.8USNO-B1Query vizier around this object
39.5212.765113.4785I=21.1, R=21.3, g=22.7, u=23.4, z=20.8SDSSQuery vizier around this object
41.9212.754213.4810I=21.6, R=22.2, g=23.6, u=25.9, z=21.1SDSSQuery vizier around this object
43.8212.761013.5013I=18.4, R=18.6, g=19.1, u=20.1, z=18.3SDSSQuery vizier around this object
45.4212.757913.4775I=22.0, R=23.4, g=24.4, u=24.4, z=21.7SDSSQuery vizier around this object
46.9212.768813.4776I=21.7, R=22.9, g=24.6, u=23.7, z=21.4SDSSQuery vizier around this object

Queried USNO-B1, SDSS, 2MASS.

There are 168 stars within the position error. The full list is here.

* RA/Dec in equinox J2000

Magnitudes depend on the catalogue. e.g. For Sloan, R is the Sloan r mag, not the Johnson R from APM, for example.
