Swift-XRT spectra of GRB 100814A

Last updated after receiving ObsID 00431605096, version 3

Data were analysed using HEASOFT version 6.32

About these products.

Get another burst.

Add time-sliced spectrum.

The spectral fits assume a redshift: 1.44 (GCN 11089)

Non-standard pipeline processing was used to produce these data. Times when the XRT was hotter than -51.5 degrees were removed; and the object position in the FITS headers was corrected

Jump to: Time-averaged|Late Time


Time-averaged spectrum (T0 + 93 to 145239 s)

Download spectral files for Time-averaged spectrum.

Plots to download

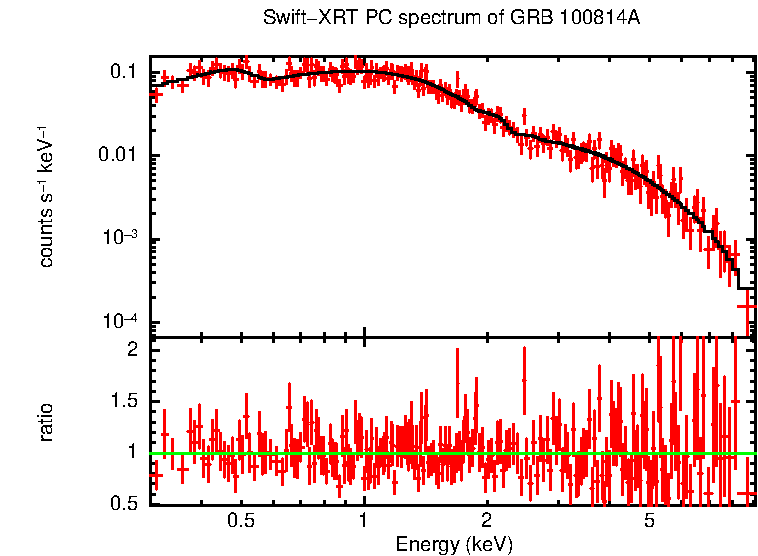

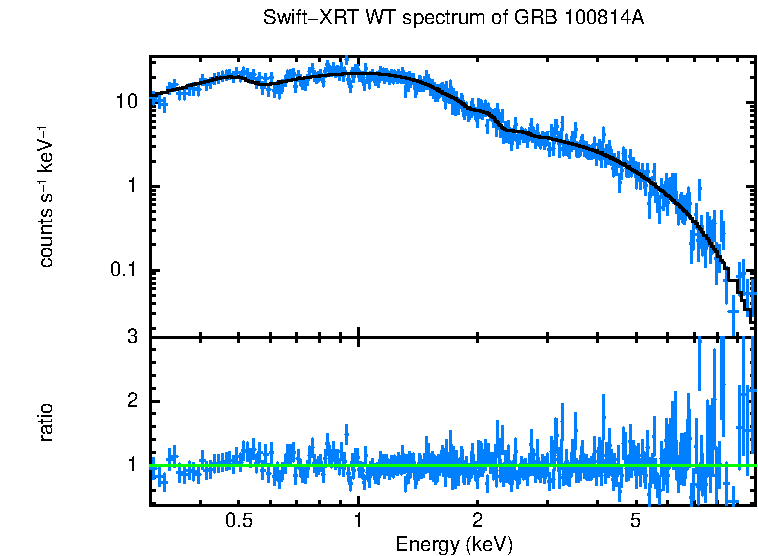

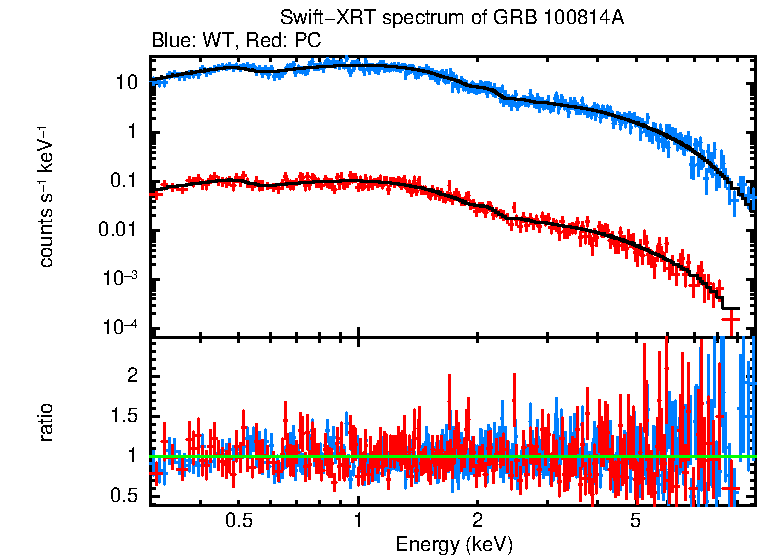

WT and PC mode spectra of Time-averaged

WT mode. Mean photon arrival: T0+218 s

NH (Galactic)1.85 × 1020 cm-2
NH (intrinsic)1.7 (+0.5, -0.5) × 1021 cm-2
z of absorber1.44
Photon index1.63 (+0.03, -0.03)
Flux (0.3-10 keV)
(Observed)
2.69 (+0.06, -0.06) × 10-9 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
2.86 (+0.05, -0.05) × 10-9 erg cm-2 s-1
Counts to flux (obs)3.89 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)4.14 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
780.51 (752)
Spectrum exposure321 s

PC mode. Mean photon arrival: T0+53683 s

NH (Galactic)1.85 × 1020 cm-2
NH (intrinsic)1.3 (+0.7, -0.7) × 1021 cm-2
z of absorber1.44
Photon index1.82 (+0.05, -0.05)
Flux (0.3-10 keV)
(Observed)
9.07 (+0.30, -0.29) × 10-12 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
9.74 (+0.27, -0.26) × 10-12 erg cm-2 s-1
Counts to flux (obs)3.53 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)3.79 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
569.55 (590)
Spectrum exposure30.9 ks

[Back to top]

Late Time spectrum (T0 + 4002 to 145239 s)

Download spectral files for Late Time spectrum.

Plots to download

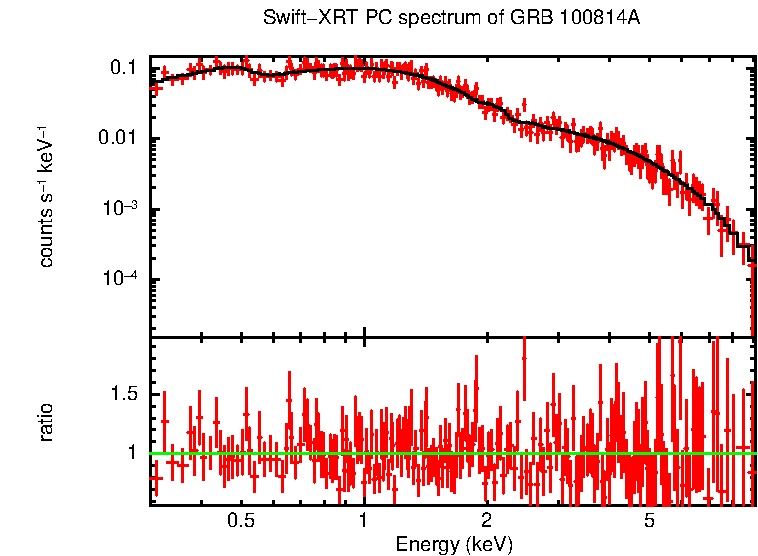

PC mode spectrum of Late Time

PC mode. Mean photon arrival: T0+56620 s

NH (Galactic)1.85 × 1020 cm-2
NH (intrinsic)1.4 (+0.7, -0.7) × 1021 cm-2
z of absorber1.44
Photon index1.82 (+0.05, -0.05)
Flux (0.3-10 keV)
(Observed)
8.49 (+0.29, -0.28) × 10-12 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
9.15 (+0.26, -0.25) × 10-12 erg cm-2 s-1
Counts to flux (obs)3.52 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)3.79 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
544.84 (582)
Spectrum exposure30.5 ks
