Catalogue XRT results for GRB 150103A

Data were analysed using HEASOFT version 6.32

About these products.

Back to list of GRBs.

Summary Information

RA:08h 46m 39.82sLC breaks:1
Dec:-48° 53′ 09.4′′LC type:One-break, shallow first.
Err:1.6′′NH,intr.:1.15×1022 cm-2
Gal long:267.672RedshiftUnknown
Gal lat:-3.529Γ1.8
| |

Jump to: Light curve | Spectra | Compare to other bursts.

If you use any of these data, please cite Evans et al. (2009), which describes how these products were created (see the usage policy for more information).

Light curve

Hide the light curve section.

This light curve comes from the light curve repository (if you use it, please cite Evans et al [2007, 2009]. Flares, marked by cross-hatched regions, are identified automatically, but may have been manually corrected. These are excluded from the fit. Any power-law breaks added to the fit must be required at the 4-σ level (according to an f-test) to be included in the best-fit. Details of all fits attempted are given below the plot. For more information see the light curve fitting documentation.

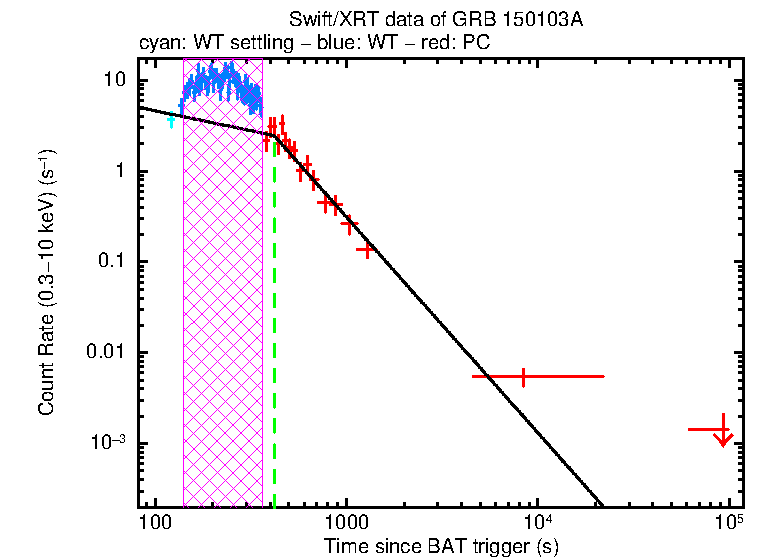

Fitted light curve of GRB 150103A

Fit Details

Nbreaksχ2dofCommentsImage
010816Image of this fit
123.314Break required.

(2.18e-03 % probability of chance improvement).
This is the best fit.
Image of this fit
29.912Break significance <4-σ
(0.59 % probability of chance improvement)
Image of this fit
38.910Break significance <4-σ
(3.36 % probability of chance improvement)
Image of this fit

There are 1 flares excluded from the fit:

  • 140—362 s

The best-fitting light curve has 1 break.

Click on the number of breaks in the table to the right to change which fit is plotted above and detailed below.

Currently showing the best fit.

α10.44 (+0.24, -0.28)
Tb,1418 (+56, -175) s
α22.37 (+0.31, -0.26)

[Back to top]


Spectra

Hide the spectrum section.

Spectra have been created for each power-law segment in the best fitting light curve (shown above). Times of flaring have not been removed, however this makes little difference to most spectra (see Fig 7/8c of Evans et al. 2009). For more information see the time-resolved spectroscopy documentation.

Jump to: phase1|phase2

phase1 spectrum (T0 + 134 to 417 s)

Download spectral files for phase1 spectrum.

Plots to download

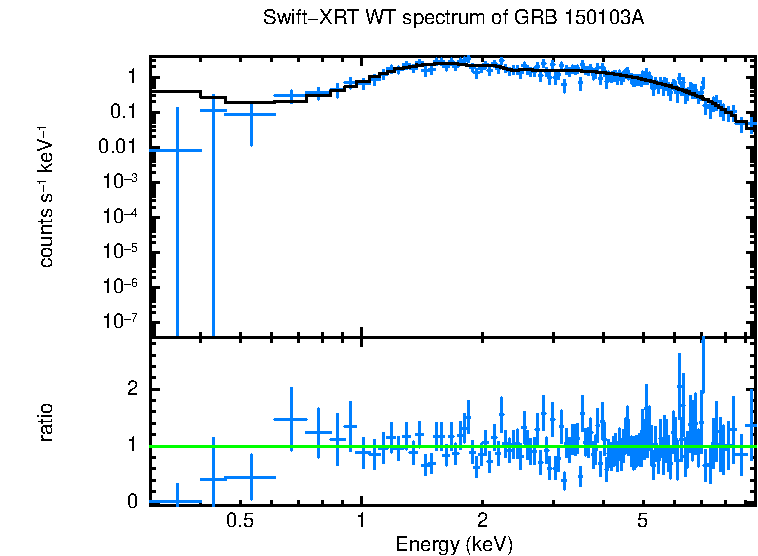

WT and PC mode spectra of GRB 150103A

WT mode. Mean photon arrival: T0+241 s

NH (Galactic)8.96 × 1021 cm-2
NH (intrinsic)7.9 (+3.0, -2.7) × 1021 cm-2
z of absorber0
Photon index1.24 (+0.16, -0.15)
Flux (0.3-10 keV)
(Observed)
7.0 (+0.5, -0.5) × 10-10 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
9.4 (+0.6, -0.5) × 10-10 erg cm-2 s-1
Counts to flux (obs)7.90 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)1.06 × 10-10 erg cm-2 ct-1
W-stat (dof)
What's this?
548.29 (619)
Spectrum exposure231 s

PC mode. Mean photon arrival: T0+396 s

NH (Galactic)8.96 × 1021 cm-2
NH (intrinsic)2.8 (+18.2, -2.8) × 1021 cm-2
z of absorber0
Photon index1.37 (+1.18, -0.64)
Flux (0.3-10 keV)
(Observed)
2.12 (+1.05, -0.77) × 10-10 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
2.86 (+2.98, -0.85) × 10-10 erg cm-2 s-1
Counts to flux (obs)7.32 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)9.84 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
31.13 (38)
Spectrum exposure52 s

[Back to top]


phase2 spectrum (T0 + 420 to 98966 s)

Download spectral files for phase2 spectrum.

Plots to download

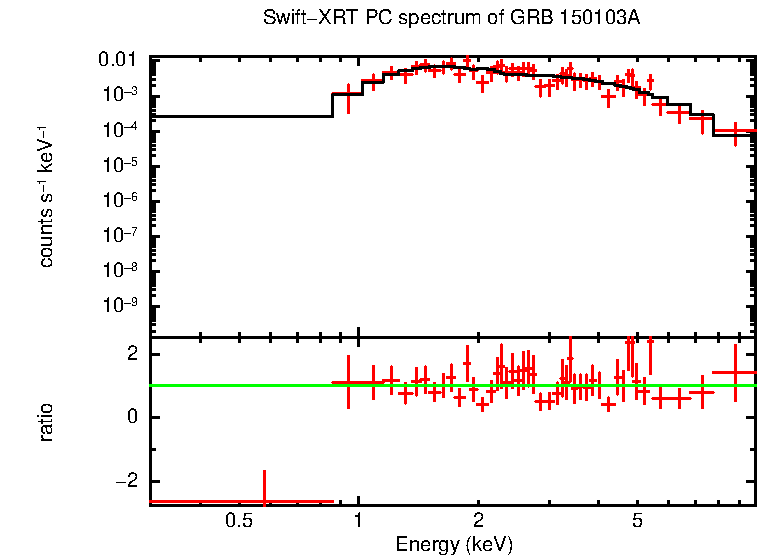

PC mode spectrum of GRB 150103A

PC mode. Mean photon arrival: T0+1677 s

NH (Galactic)8.96 × 1021 cm-2
NH (intrinsic)1.3 (+0.7, -0.6) × 1022 cm-2
z of absorber0
Photon index1.9 (+0.4, -0.4)
Flux (0.3-10 keV)
(Observed)
2.3 (+0.4, -0.3) × 10-12 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
4.7 (+2.4, -1.0) × 10-12 erg cm-2 s-1
Counts to flux (obs)6.58 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)1.35 × 10-10 erg cm-2 ct-1
W-stat (dof)
What's this?
175.95 (227)
Spectrum exposure16.2 ks

[Back to top]



Comparison with other bursts

Hide the comparison section.

Parameter distributions

The plots below show the probability density functions of the temporal and time-averaged spectral parameters for all GRBs, with the data for GRB 150103A shown on in colour. Click the images for larger versions.

For all plots, the solid vertical lines mark the values for this GRB, and the dashed lines the 1-σ uncertainties. For α and Tb, the colour changes for each phase. For the spectral parameters, the WT fits are shown in blue and the PC in red. These figures correspond to Figs. 5,6, 7a and 8a of Evans et al. (2009). See the PDF documentation for more information.

Temporal indicesBreak TimesNHSpectral indices
Comparison of decay indices Comparison of light curve break times Comparison of intrinsic column densities Comparison of spectral energy indices

Closure Relationships

The plots below show (α, β) scatter plots for each phase of all One-break, shallow first light curves. GRB 150103A is shown in colour; where multiple points appear in a given phase (e.g. WT and PC mode spectra for that phase), the different colours refer to different spectra. α and β are the temporal and spectral energy power-law indices respectively. The shaded regions mark those allowed by the standard closure relationships. These figures correspond to Fig. 10 of Evans et al. (2009). See the closure relationship documentation for more information.

One-break, shallow first
Shallow phase
One-break, shallow first
Steep phase
Comparison of One-break, shallow first, shallow phase closuresComparison of One-break, shallow first, steep phase closures
