Catalogue XRT results for GRB 130505A

Data were analysed using HEASOFT version 6.32

About these products.

Back to list of GRBs.

Summary Information

RA:09h 08m 14.60sLC breaks:5
Dec:+17° 29′ 04.6′′LC type:Canonical.
Err:1.4′′NH,intr.:7.07×1021 cm-2
Gal long:211.267Redshift2.27
Gal lat:37.891Γ1.7
| |

Jump to: Light curve | Spectra | Compare to other bursts.

If you use any of these data, please cite Evans et al. (2009), which describes how these products were created (see the usage policy for more information).

Light curve

Hide the light curve section.

This light curve comes from the light curve repository (if you use it, please cite Evans et al [2007, 2009]. Flares, marked by cross-hatched regions, are identified automatically, but may have been manually corrected. These are excluded from the fit. Any power-law breaks added to the fit must be required at the 4-σ level (according to an f-test) to be included in the best-fit. Details of all fits attempted are given below the plot. For more information see the light curve fitting documentation.

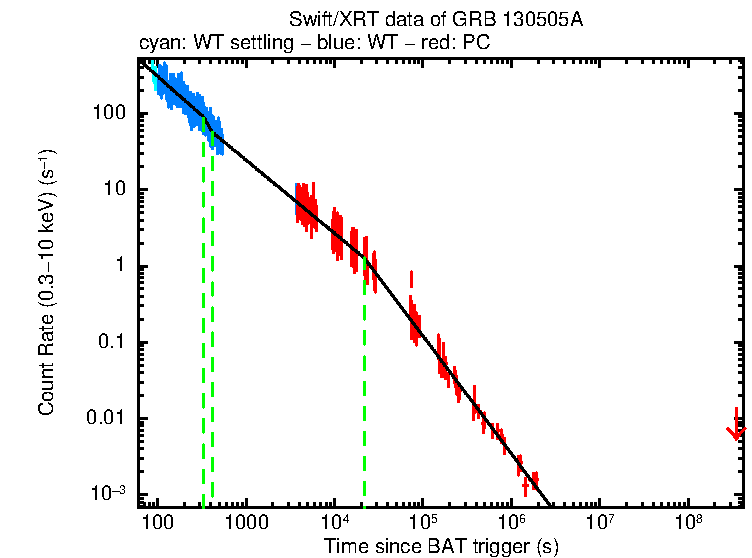

Fitted light curve of GRB 130505A

Fit Details

Nbreaksχ2dofCommentsImage
01828712Image of this fit
1623710Break required.

(1.13e-164 % probability of chance improvement)
Image of this fit
2568708Break required.

(5.77e-13 % probability of chance improvement)
Image of this fit
3535706Break required.

(6.62e-08 % probability of chance improvement)
Image of this fit
4529704Break significance <4-σ
(3.35 % probability of chance improvement)
Image of this fit
5510702Break required.

(9.87e-05 % probability of chance improvement).
This is the best fit.
Image of this fit

There are no flares ignored from this fit.

The best-fitting light curve has 5 breaks.

Click on the number of breaks in the table to the right to change which fit is plotted above and detailed below.

Currently showing the best fit.

α10.81 (+0.14, -0.14)
Tb,1196 (+24, -14) s
α22.26 (+2.82, -0.72)
Tb,2242 (+25, -11) s
α3-0.30 (+0.70, -1.20)
Tb,3292 (+26, -11) s
α41.91 (+0.34, -0.30)
Tb,4416 (+62, -29) s
α50.959 (+0.014, -0.017)
Tb,52.16 (+0.22, -0.18) × 104 s
α61.545 (+0.025, -0.025)

[Back to top]


Spectra

Hide the spectrum section.

Spectra have been created for each power-law segment in the best fitting light curve (shown above). Times of flaring have not been removed, however this makes little difference to most spectra (see Fig 7/8c of Evans et al. 2009). For more information see the time-resolved spectroscopy documentation.

Jump to: phase1|phase2|phase3|phase4|phase5|phase6

phase1 spectrum (T0 + 102 to 195 s)

Download spectral files for phase1 spectrum.

Plots to download

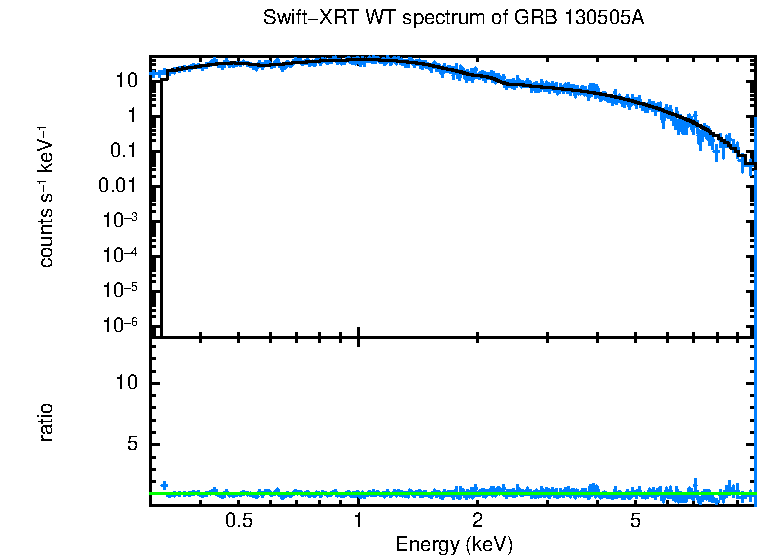

WT mode spectrum of GRB 130505A

WT mode. Mean photon arrival: T0+150 s

NH (Galactic)4.03 × 1020 cm-2
NH (intrinsic)5.2 (+1.7, -1.6) × 1021 cm-2
z of absorber2.27
Photon index1.70 (+0.04, -0.04)
Flux (0.3-10 keV)
(Observed)
7.12 (+0.19, -0.19) × 10-9 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
7.92 (+0.17, -0.17) × 10-9 erg cm-2 s-1
Counts to flux (obs)3.80 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)4.22 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
668.87 (685)
Spectrum exposure93 s

[Back to top]


phase2 spectrum (T0 + 195 to 241 s)

Download spectral files for phase2 spectrum.

Plots to download

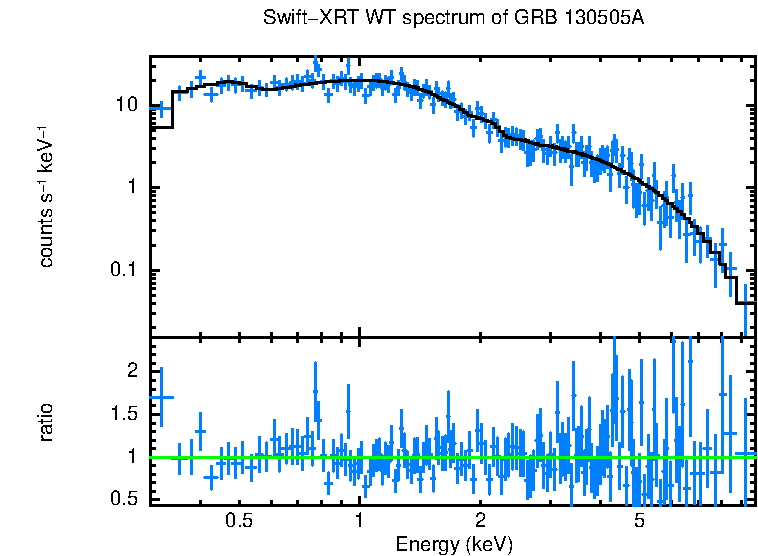

WT mode spectrum of GRB 130505A

WT mode. Mean photon arrival: T0+217 s

NH (Galactic)4.03 × 1020 cm-2
NH (intrinsic)3.9 (+2.8, -2.7) × 1021 cm-2
z of absorber2.27
Photon index1.70 (+0.07, -0.07)
Flux (0.3-10 keV)
(Observed)
4.20 (+0.20, -0.19) × 10-9 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
4.63 (+0.18, -0.17) × 10-9 erg cm-2 s-1
Counts to flux (obs)3.78 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)4.16 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
506.39 (537)
Spectrum exposure45 s

[Back to top]


phase3 spectrum (T0 + 241 to 291 s)

Download spectral files for phase3 spectrum.

Plots to download

WT mode spectrum of GRB 130505A

WT mode. Mean photon arrival: T0+267 s

NH (Galactic)4.03 × 1020 cm-2
NH (intrinsic)1.8 (+2.8, -1.8) × 1021 cm-2
z of absorber2.27
Photon index1.67 (+0.07, -0.07)
Flux (0.3-10 keV)
(Observed)
3.52 (+0.18, -0.17) × 10-9 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
3.80 (+0.16, -0.15) × 10-9 erg cm-2 s-1
Counts to flux (obs)3.83 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)4.13 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
452.97 (522)
Spectrum exposure50 s

[Back to top]


phase4 spectrum (T0 + 291 to 415 s)

Download spectral files for phase4 spectrum.

Plots to download

WT mode spectrum of GRB 130505A

WT mode. Mean photon arrival: T0+346 s

NH (Galactic)4.03 × 1020 cm-2
NH (intrinsic)3.1 (+2.1, -2.0) × 1021 cm-2
z of absorber2.27
Photon index1.75 (+0.05, -0.05)
Flux (0.3-10 keV)
(Observed)
2.34 (+0.08, -0.08) × 10-9 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
2.58 (+0.07, -0.07) × 10-9 erg cm-2 s-1
Counts to flux (obs)3.67 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)4.05 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
567.55 (615)
Spectrum exposure124 s

[Back to top]


phase5 spectrum (T0 + 415 to 21627 s)

Download spectral files for phase5 spectrum.

Plots to download

WT and PC mode spectra of GRB 130505A

WT mode. Mean photon arrival: T0+475 s

NH (Galactic)4.03 × 1020 cm-2
NH (intrinsic)5.4 (+2.9, -2.7) × 1021 cm-2
z of absorber2.27
Photon index1.73 (+0.07, -0.07)
Flux (0.3-10 keV)
(Observed)
1.56 (+0.07, -0.07) × 10-9 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
1.75 (+0.06, -0.06) × 10-9 erg cm-2 s-1
Counts to flux (obs)3.73 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)4.17 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
520.28 (544)
Spectrum exposure126 s

PC mode. Mean photon arrival: T0+10279 s

NH (Galactic)4.03 × 1020 cm-2
NH (intrinsic)6.9 (+2.2, -2.1) × 1021 cm-2
z of absorber2.27
Photon index1.71 (+0.05, -0.05)
Flux (0.3-10 keV)
(Observed)
1.06 (+0.04, -0.04) × 10-10 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
1.20 (+0.04, -0.04) × 10-10 erg cm-2 s-1
Counts to flux (obs)3.84 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)4.32 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
598.33 (598)
Spectrum exposure7.5 ks

[Back to top]


phase6 spectrum (T0 + 21627 to 1989740 s)

Download spectral files for phase6 spectrum.

Plots to download

PC mode spectrum of GRB 130505A

PC mode. Mean photon arrival: T0+158100 s

NH (Galactic)4.03 × 1020 cm-2
NH (intrinsic)9.1 (+3.1, -2.9) × 1021 cm-2
z of absorber2.27
Photon index1.78 (+0.07, -0.07)
Flux (0.3-10 keV)
(Observed)
1.30 (+0.07, -0.06) × 10-12 erg cm-2 s-1
Flux (0.3-10 keV)
(Unabsorbed)
1.51 (+0.06, -0.06) × 10-12 erg cm-2 s-1
Counts to flux (obs)3.72 × 10-11 erg cm-2 ct-1
Counts to flux (unabs)4.31 × 10-11 erg cm-2 ct-1
W-stat (dof)
What's this?
459.42 (528)
Spectrum exposure139.2 ks

[Back to top]



Comparison with other bursts

Hide the comparison section.

Parameter distributions

The plots below show the probability density functions of the temporal and time-averaged spectral parameters for all GRBs, with the data for GRB 130505A shown on in colour. Click the images for larger versions.

For all plots, the solid vertical lines mark the values for this GRB, and the dashed lines the 1-σ uncertainties. For α and Tb, the colour changes for each phase. For the spectral parameters, the WT fits are shown in blue and the PC in red. These figures correspond to Figs. 5,6, 7a and 8a of Evans et al. (2009). See the PDF documentation for more information.

Temporal indicesBreak TimesNHSpectral indices
Comparison of decay indices Comparison of light curve break times Comparison of intrinsic column densities Comparison of spectral energy indices

Closure Relationships

The plots below show (α, β) scatter plots for each phase of all Canonical light curves. GRB 130505A is shown in colour; where multiple points appear in a given phase (e.g. WT and PC mode spectra for that phase), the different colours refer to different spectra. α and β are the temporal and spectral energy power-law indices respectively. The shaded regions mark those allowed by the standard closure relationships. These figures correspond to Fig. 10 of Evans et al. (2009). See the closure relationship documentation for more information.

Canonical
Steep phase
Canonical
Plateau
Canonical
'Normal'
Canonical
Post jet-break
Comparison of Canonical, steep phase closuresComparison of Canonical, plateau phase closuresComparison of Canonical, normal phase closuresComparison of Canonical, post jet-break phase closures
